Versa retinendi anulum pro externa Shafts-M1408 av

A shaft reverse retaining ring, is a kind of elastic element used for connecting and fixing parts, its function is to fix the reverse shaft and prevent it from slipping or falling off, when installed, its elastic deformation is in the opposite direction to the common shaft elastic retaining ring.

Material: Conventional ipsum ferro et immaculatam ferro (65mn, c64s, 2CR13, CCCIV, 1.4122, etc)

Superficies curatio: Omni generis conventional vexillum curatio, ut phosphatago, Dacomet, Jumet, cadmiae plating, cadmiae nickel plating, electrophoresis, et sic in.

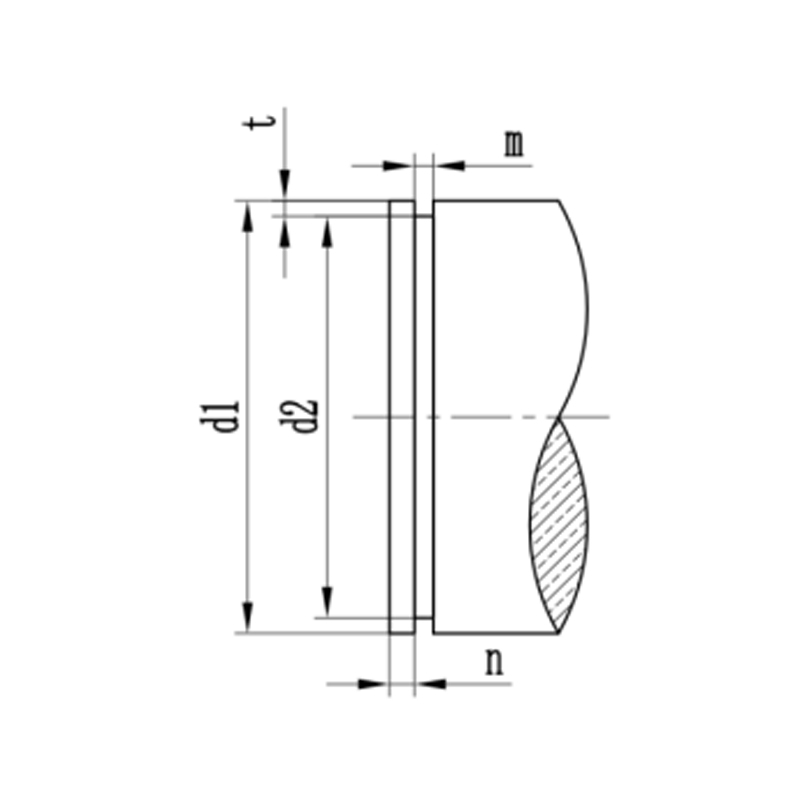

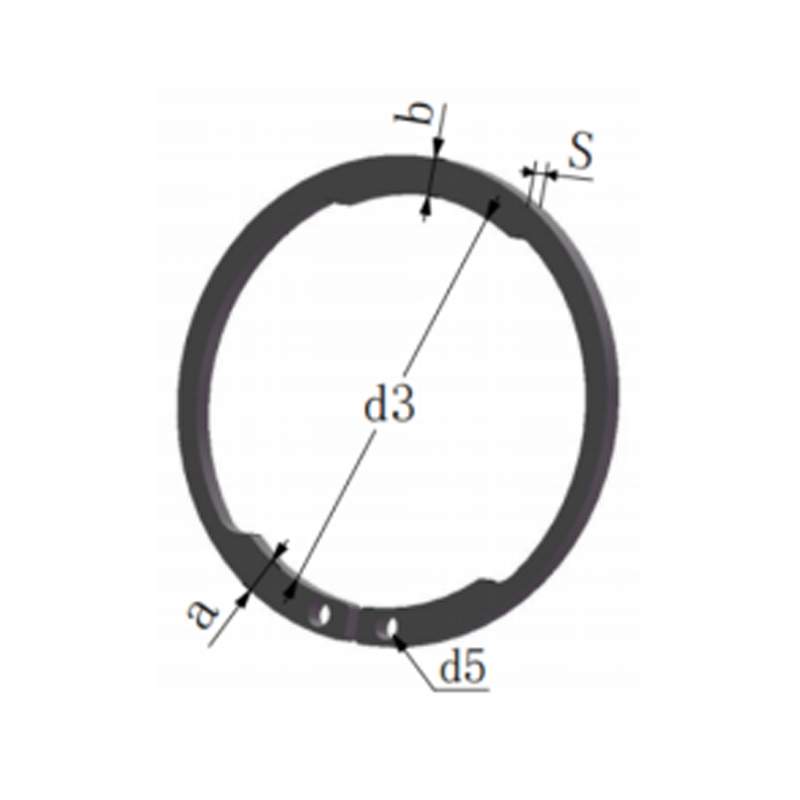

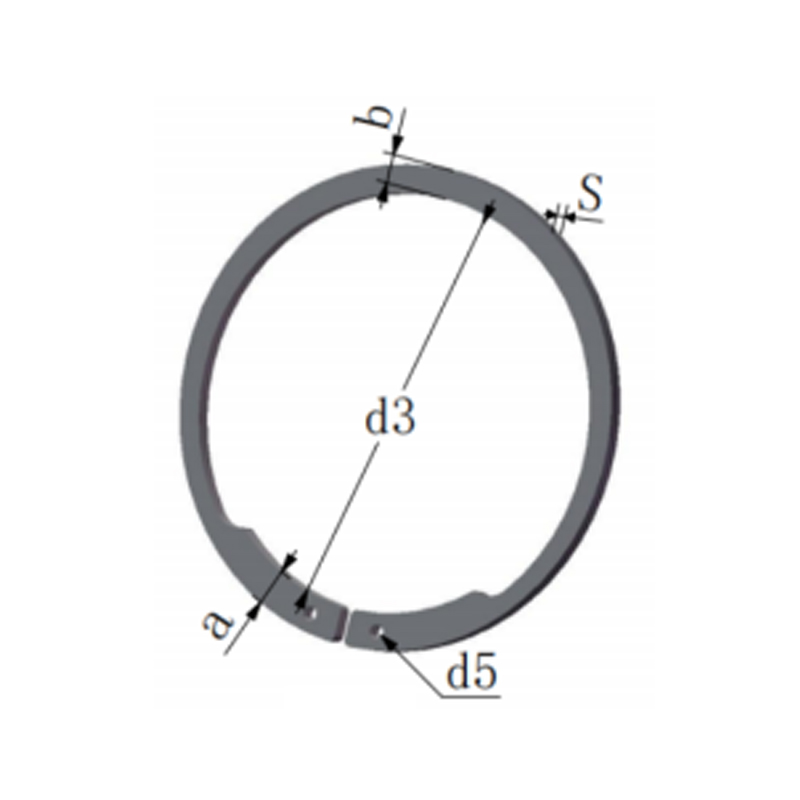

D1: Specification / nominis magnitudine; S: crassitudine; D3, interior diameter; ≈B, width humero; D5, parva foraminis; Wt: Weight; FN, sulcus afferentem facultatem; P. retinendi anulus afferentem facultatem (recti angulus); G: Chamfer magnitudine; FRG: retinendi anulum ferre facultatem (Chamferus); n ABL: terminus celeritate;

Versa retinendi anulum pro externa Shafts-M1408 av

D1 S Tol S1 Tol D3 max ≈b D5 min Wt (G) D2 Tol m Tol n min
10
0.6
-0.05
9.2
0,10 -0.36
1.8
± 0.1
1
0.25
9.5
-0.11
0.7
0.25
0.7
0.62
12
1
-0.06
11
0,10 -0.36
2.1
± 0.1
1.3
0.5
11.5
-0.11
1.1
0.25
0.7
0.7
13
1
-0.06
11.9
0,10 -0.36
2.1
± 0.1
1.3
0.56
12.4
-0.11
1.1
0.3
0.9
0.9
14
1
-0.06
12.9
0,10 -0.36
2.1
± 0.1
1.3
0.58
13.4
-0.11
1.1
0.3
0.9
0.97
15
1
-0.06
13.8
0,10 -0.36
2.2
± 0.1
1.3
0.66
14.3
-0.11
1.1
0.35
1
1.22
16
1
-0.06
14.7
0,10 -0.36
2.3
± 0.1
1.3
0.72
15.2
-0.11
1.1
0.4
1.2
1.48
17
1
-0.06
15.7
0,10 -0.36
2.4
± 0.1
1.3
0.81
16.2
-0.11
1.1
0.4
1.2
1.57
18
1.2
-0.06
16.5
0,10 -0.36
2.6
± 0.1
1.5
1.14
17
-0.11
1.3
0.5
1.5
2.07
20
1.2
-0.06
18.5
0,13 -0.42
2.8
± 0.1
1.5
1.43
19
-0.15
1.3
0.5
1.5
2.3
21
1.2
-0.06
19.35
0,13 -0.42
2.8
± 0.1
1.5
1.53
20
-0.15
1.3
0.5
1.5
2.42
22
1.2
-0.06
20.5
0,13 -0.42
3
± 0.1
1.5
1.63
21
-0.15
1.3
0.5
1.5
2.53
23
1.2
-0.06
21.5
0,13 -0.42
3.1
± 0.1
1.5
1.78
22
-0.15
1.3
0.5
1.5
2.66
24
1.2
-0.06
22.2
0.21 -0.42
3.2
± 0.1
1.5
1.9
22.9
-0.21
1.3
0.55
1.6
3.03
25
1.2
-0.06
23.2
0.21 -0.42
3.4
± 0.1
1.5
2.1
23.9
-0.21
1.3
0.55
1.6
3.18
26
1.2
-0.06
24.2
0.21 -0.42
3.5
± 0.1
1.5
2.18
24.9
-0.21
1.3
0.55
1.6
3.3
28
1.5
-0.06
25.9
0.21 -0.42
3.8
± 0.1
2
3.18
26.6
-0.21
1.6
0.7
2.1
4.5
30
1.5
-0.06
27.9
0.21 -0.42
3.9
± 0.1
2
3.58
28.6
-0.21
1.6
0.7
2.1
4.86
32
1.5
-0.06
29.6
0.21 -0.42
4
± 0.1
2
3.88
30.3
-0.25
1.6
0.85
2.5
6.25
34
1.5
-0.06
31.5
0,25 -0.50
4
± 0.1
2
3.6
32.3
-0.25
1.6
0.85
2.5
6.67
35
1.5
-0.06
32.2
0,25 -0.50
4.2
± 0.1
2
4.53
33
-0.25
1.6
1
2.5
8
38
1.75
-0.06
34.5
0,25 -0.50
4.5
± 0.1
2
5.5
35.8
-0.25
1.85
1.1
3.3
10.6
40
1.75
-0.06
36.5
0,39 -0.90
4.7
± 0,2
2
6.49
37.5
-0.25
1.85
1.25
3.8
12.6
42
1.75
-0.06
38.5
0,39 -0.90
4.7
± 0,2
2
6.51
39.5
-0.25
1.85
1.25
3.8
13.3
45
1.75
-0.06
41.5
0,39 -0.90
4.7
± 0,2
2
7.8
42.5
-0.25
1.85
1.25
3.8
14.3
47
1.75
-0.06
43.5
0,39 -0.90
5
± 0,2
2
8.09
44.5
-0.25
1.85
1.25
3.8
15
48
1.75
-0.06
44.5
0,39 -0.90
5.2
± 0,2
2
8.48
45.5
-0.25
1.85
1.25
3.8
15.8
50
2
-0.07
45.8
0,39 -0.90
5.2
± 0,2
2.5
9.84
47
-0.25
2.15
1.5
4.5
19.2
55
2
-0.07
50.8
-11.10 0.46
5.8
± 0,2
2.5
11.42
52
-0.30
2.15
1.5
4.5
21
58
2
-0.07
53.8
-11.10 0.46
5.8
± 0,2
2.5
13
55
-0.30
2.15
1.5
4.5
22.2
60
2
-0.07
55.8
-11.10 0.46
5.8
± 0,2
2.5
13.8
57
-0.30
2.15
1.5
4.5
23
65
2.5
-0.07
60.8
-11.10 0.46
6
± 0.3
2.5
20.75
62
-0.30
2.65
1.5
4.5
24.8
70
2.5
-0.07
65.5
-11.10 0.46
6.5
± 0.3
2.5
23.7
67
-0.30
2.65
1.5
4.5
27
72
2.5
-0.07
67.5
-11.10 0.46
6.5
± 0.3
2.5
24.7
69
-0.30
2.65
1.5
4.5
27.7
75
2.5
-0.07
70.5
-11.10 0.46
6.5
± 0.3
2.5
27.5
72
-0.30
2.65
1.5
4.5
29.2
80
2.5
-0.07
74.5
-11.10 0.46
7
± 0.3
2.5
28.9
76.5
-0.30
2.65
1.75
5.3
36.6
82
2.5
-0.07
76.5
-11.10 0.46
7
± 0.3
2.5
29.65
78.5
-0.35
2.65
1.75
5.3
37.4
85
3
-0.08
79.5
-11.10 0.46
7.4
± 0.3
3
39.5
81.5
-0.35
3.15
1.75
5.3
38.3
87
3
-0.08
81.5
0.54 -1.30
7.4
± 0.3
3
40
83.5
-0.35
3.15
1.75
5.3
39.2
90
3
-0.08
84.5
0.54 -1.30
7.4
± 0.3
3
41.92
86.5
-0.35
3.15
1.75
5.3
41.7
95
3
-0.08
89.5
0.54 -1.30
8
± 0.3
3
47.7
91.5
-0.35
3.15
1.75
5.3
42.7
100
3
-0.08
94.5
0.54 -1.30
8
± 0.3
3
49.92
96.5
-0.35
3.15
1.75
5.3
45.8
